Instrumentation is the subject that explains how pilots obtain the information needed to fly the aircraft safely. Many students expect it to be highly technical or full of engineering terminology. In reality, Instrumentation is usually more accessible than it appears. The main challenge is not memorisation or complicated formulas — it is understanding how instruments obtain information and how that information is presented to the pilot.

Modern aircraft rely heavily on instruments and automated systems. Pilots cannot directly see airspeed, altitude, aircraft attitude, or navigation position. Instead, these parameters are measured through sensors, processed by systems, and displayed on cockpit instruments. Instrumentation explains how that process works. Understanding this subject means understanding how the aircraft senses its environment and communicates that information to you. In this article we look at what Instrumentation is really about, where students typically struggle, and how to approach it in a way that actually works.

01 What Instrumentation is really about

At its core, Instrumentation explains how physical quantities are measured and converted into usable flight information. Every instrument begins with a sensor. Sensors detect parameters such as pressure, temperature, acceleration, or magnetic direction. These signals are then transmitted through mechanical, electrical, or digital systems and displayed to the pilot in a clear and usable form.

One of the most fundamental areas of the subject involves air data measurement. Instruments must determine airspeed, altitude, vertical speed, and other values essential for flight. These measurements rely on pressure differences and atmospheric conditions, which are interpreted through specialised systems before appearing on cockpit displays.

Another major area focuses on direction and orientation. Magnetism provides basic directional reference through the magnetic compass, while more advanced systems use gyroscopes and inertial sensors to determine aircraft attitude and movement. These systems allow the aircraft to maintain stable flight references even when outside visual cues are limited or unavailable.

From there, Instrumentation expands into navigation and automation. Systems capable of determining aircraft position, guiding the aircraft along a route, and controlling parts of the flight are introduced. In modern aircraft, these individual components are often integrated into larger systems that combine navigation, guidance, communication, and monitoring functions into a unified cockpit environment.

In simple terms, Instrumentation explains how the aircraft collects information, processes it, and presents it to the pilot in a meaningful way.

Instrumentation is about how the aircraft senses, processes, and presents the information the pilot depends on.

02 Why students find Instrumentation challenging

Instrumentation is generally not considered one of the most difficult ATPL subjects. The difficulty rarely comes from memorisation — compared with subjects like Air Law or Performance, it requires far fewer definitions or numerical values to be learned precisely. The challenge lies instead in understanding how different systems interact and how complex cockpit technologies operate.

1. Systems found on larger aircraft

Many student pilots complete their initial training on simple aircraft with basic flight instruments. Instrumentation, however, also covers systems commonly found on larger or more technologically advanced aircraft — inertial navigation systems, flight management systems, and automatic flight control systems. Because many students have never encountered these systems in real operations, the concepts can feel abstract at first.

2. Automation and integrated systems

Autopilots, flight guidance systems, and flight management computers work together to assist the pilot with navigation and aircraft control. These systems rely on inputs from multiple sensors and continuously exchange information with each other. The challenge for students is visualising the flow of information — understanding which system provides data, which processes it, and which acts on it.

3. Understanding instead of memorising

Instrumentation is not a subject where learning definitions word-for-word is enough. Questions often test how an instrument behaves under different conditions or what happens when a sensor provides incorrect data. The best preparation is developing a clear mental picture of how instruments operate rather than attempting to memorise isolated facts.

Instrumentation becomes challenging when system logic is replaced by isolated fact-learning.

03 Common mistakes students make

1. Missing the Big Picture

The most common mistake is studying each instrument individually without understanding the system behind it. Instruments rarely operate alone — they are part of a larger system involving sensors, processing units, and displays.

2. Wrong assumption

A closely related mistake is assuming that modern electronic displays have replaced the underlying measurement principles. Even when information appears on sophisticated digital screens, the data still originates from the same basic sensors and measurement techniques.

3. Overconfidence

Many students also underestimate navigation and automation systems. While the basic flight instruments feel familiar, systems that combine navigation data, flight guidance, and automation require more careful study.

4. Blind spot

Finally, alerting and monitoring systems are frequently overlooked. Warning systems, proximity systems, and monitoring equipment are essential parts of modern cockpit design and appear regularly in the exam.

The most common Instrumentation mistakes come from separating displays from the systems and sensors behind them.

04 How to approach Instrumentation strategically

1. Think in terms of information flow

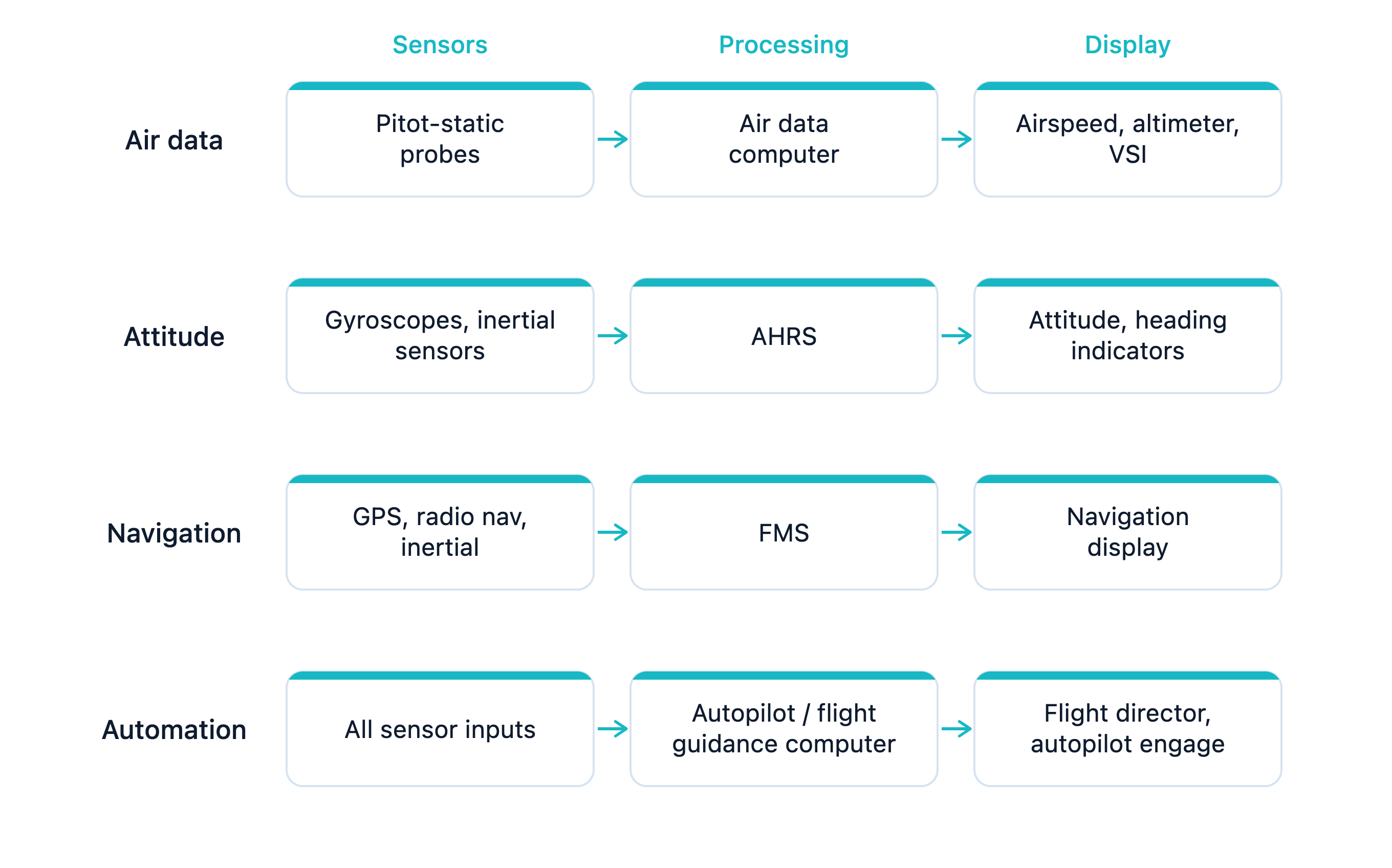

Instrumentation rewards logical thinking rather than memorisation. The most effective approach is to think in terms of information flow. Every instrument follows the same basic sequence: a sensor measures a physical parameter, the signal is transmitted and processed, and the result is displayed to the pilot. Understanding that sequence helps simplify even complex systems.

2. Use diagrams and visualisation

Visualisation is particularly helpful in this subject. Diagrams showing how sensors connect to processing units and displays can clarify concepts that feel confusing when described only in text. If you can sketch the information flow of a system from sensor to display, you understand it.

3. Understand why the systems exist

It is also worth understanding why certain systems exist. Automation and navigation systems were developed to reduce pilot workload and improve accuracy. When you view these systems as solutions to operational problems rather than abstract technology, their design becomes easier to follow.

4. Practice behaviour-based questions

When practising exam questions, focus on how instruments respond to changes in pressure, motion, or sensor inputs. Many questions test instrument behaviour rather than simple definitions.

Good Instrumentation preparation is built on system flow, visualisation, and understanding how information moves from sensor to display.

05 Is Instrumentation a difficult ATPL subject?

Instrumentation is generally considered a medium-difficulty ATPL subject. It does not require advanced mathematics and involves less memorisation than many other subjects in the syllabus. The challenge is patience and careful attention to system logic. For students who approach it methodically, Instrumentation often becomes one of the more interesting subjects — it connects theoretical knowledge directly to the cockpit environment and explains how pilots obtain the information they rely on during every flight.

Difficulty rating

Medium

06 Why Instrumentation matters in real life

Instrumentation is not background knowledge — it is what allows you to make sense of the cockpit when something does not look right.

Consider an airspeed indication that becomes unreliable. Understanding how air data is measured and which systems depend on it helps you recognise the problem quickly and apply the correct procedures. Instead of reacting to a confusing set of indications, you understand the underlying cause.

Navigation systems provide another example. When flying long distances or in poor visibility, the aircraft's position is determined using complex navigation systems and sensors. Understanding how these systems determine position and update navigation information helps you interpret system behaviour and detect potential errors.

Automation systems rely entirely on instrumentation. The autopilot and flight guidance systems use sensor and navigation data to control the aircraft. Knowing how these systems obtain their information helps you monitor automation effectively and recognise when manual intervention may be needed.

Even routine flight operations depend on instrumentation. Altitude, airspeed, vertical speed, and attitude are monitored constantly through cockpit displays. Without them, modern aviation would not be possible.

Instrumentation matters because safe flying depends on understanding where cockpit information comes from and how reliable it is.
