Aviationexam Guide

Radio Navigation

How aircraft know where they are and where to go

Radio Navigation is one of the core ATPL subjects. In plain terms, it answers a single question: how does an aircraft know exactly where it is and where to go, especially when the pilot cannot see the ground?

The answer has two halves. The first is the ground-based half — radio transmitters on the ground that send signals upward, which the aircraft receives and turns into navigation guidance. The second is the satellite-based half — constellations of satellites orbiting the Earth that do the same job with far greater precision. Together, these two systems form the electronic backbone of modern instrument flying. Because these systems are used on nearly every flight, the knowledge gained here becomes practical from the first stages of instrument training all the way to airline operations. In this article we look at what Radio Navigation is really about, where students typically struggle, and how to approach it in a way that actually works.

01 What Radio Navigation is really about

Radio Navigation becomes much more approachable when students think first about what the systems do rather than what they are called.

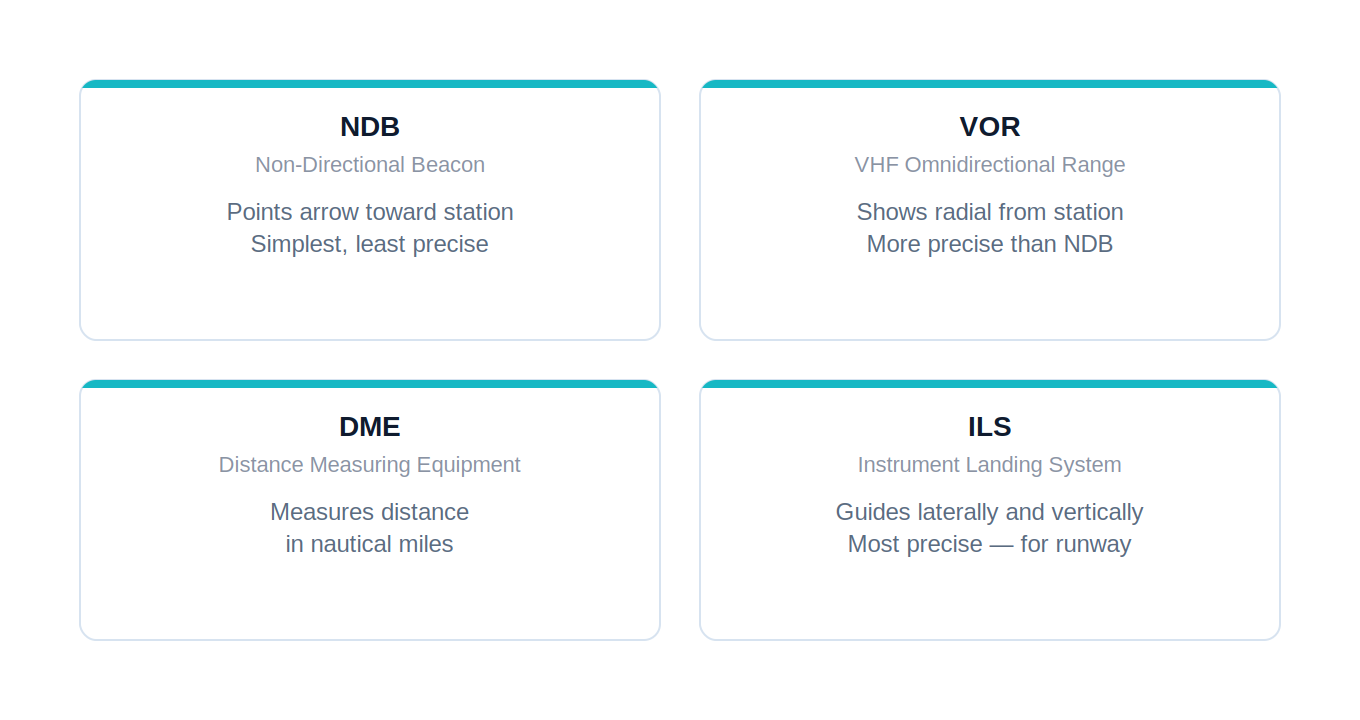

On the ground-based side, every system exists to answer one of three questions: where is the station from here, am I on the right path, or how far away is that point? The NDB is a simple radio beacon — the aircraft's instrument points an arrow toward it, telling the pilot which direction the station lies. The VOR is a more precise beacon that tells the aircraft which radial it is on — essentially which compass direction from the station the aircraft is positioned. The DME measures the distance between the aircraft and a ground station, giving the pilot a number in nautical miles. The ILS is the most precise of the ground-based systems — it guides the aircraft down a very specific path, both laterally and vertically, onto the runway in low visibility. Once students understand what each system is designed to do, the official names and technical details fall naturally into place.

On the satellite side, the focus is on how satellites provide accurate position information, how onboard systems check the quality of that information, and what happens when accuracy is not sufficient. The modern navigation environment applies performance requirements to certain routes and approaches, so pilots need to understand how satellite systems support these operations and when they cannot be relied upon.

The subject also covers how all of these systems appear in the cockpit. Instruments such as the CDI, the HSI, and the RMI translate raw signals into visual guidance. Understanding what each instrument is actually showing, and what every detail on its face means, is at the heart of what the exam tests.

Radio Navigation is about understanding how signals become usable guidance in the cockpit.

02 Why students find Radio Navigation challenging

Many students find Radio Navigation difficult at first simply because the cockpit indications require careful attention. Most exam errors arise not from misunderstanding the principles but from overlooking a detail — a small arrow, a left-right deviation, or a flag that completely changes the meaning of the instrument.

A second difficulty is that some systems appear similar in purpose but do fundamentally different things. An instrument that points toward a station and an instrument that shows deviation from a selected course look superficially related but carry completely different information.

The satellite navigation and performance-based navigation sections introduce a significant amount of new terminology. The core idea is simple: satellites give a position, the aircraft checks whether that position is accurate enough for what it needs to do, and the performance standards define exactly how accurate is accurate enough.

Some elements of the subject also require straightforward memorisation — frequency bands, propagation characteristics, and signal behaviour.

Radio Navigation becomes difficult when small display details and similar-looking concepts are read too quickly.

03 Common mistakes students make

1. Reading too fast

The most frequent mistake is reading instrument diagrams too quickly. The TO/FROM indicator, the selected course, the aircraft heading, the needle position — each of these can reverse the correct answer. Slowing down on instrument questions is not optional.

2. Similar instruments, different meaning

Confusing bearing and course deviation is closely related. An instrument that points toward a station and an instrument that shows deviation from a path look superficially similar but carry completely different information.

3. Wrong assumption

In the satellite navigation section, a common mistake is assuming that every GNSS-based procedure provides both lateral and vertical guidance. Some approaches provide lateral guidance only. Others provide both. The exam tests this distinction regularly.

4. Acronyms without context

Finally, learning definitions without context — knowing what an acronym stands for without understanding what it does and when it matters — produces knowledge that breaks down the moment a question is applied.

Most Radio Navigation errors come from rushed interpretation and detached, acronym-only learning.

04 How to approach Radio Navigation strategically

Start with purpose, not terminology

Before learning any system's name, understand what it does. Does it point toward a station? Does it show deviation from a path? Does it measure distance? Does it guide the aircraft down to a runway? Once the purpose is clear, the name and the technical details have something to attach to.

Build a method for reading instruments

Most instrument interpretation errors are process errors, not knowledge errors. Develop a consistent sequence and apply it to every cockpit diagram without exception: first check the aircraft's heading, then the selected course or bearing, then the position of the needle, then any flags that show whether the signal is valid or whether it indicates toward or away from a station. These four steps eliminate the majority of common interpretation mistakes.

Group the satellite navigation concepts as a chain of logic

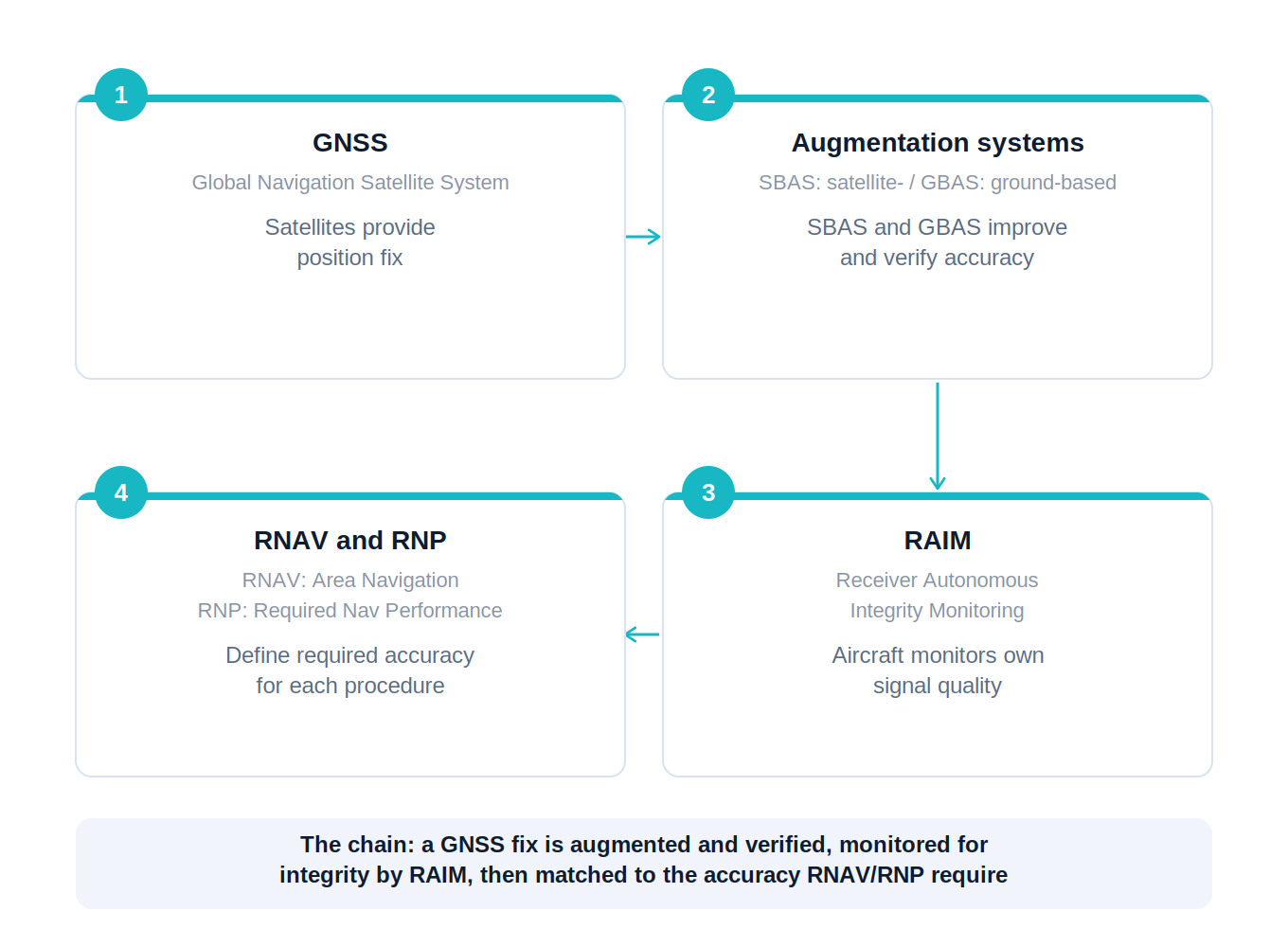

Rather than learning GNSS-related terms in isolation, organise them into a simple sequence: satellites provide a position, augmentation systems improve or verify accuracy, onboard monitoring checks whether the signal is reliable enough, and performance-based navigation standards define the required level of accuracy for a given procedure.

Separate memorisation from understanding

Radio Navigation has both elements. The wave propagation and frequency band material is largely factual and benefits from repetition and short review sessions. The instrument interpretation and satellite navigation material requires understanding.

Good Radio Navigation preparation is built on purpose-first learning, disciplined instrument reading, and clear separation between facts and system logic.

05 Is Radio Navigation a difficult ATPL subject?

Most students place Radio Navigation in the middle range of difficulty. It does not require heavy calculations like General Navigation, and it does not demand the volume of memorisation that Air Law requires. What it demands is accuracy and attention to detail. With a moderate amount of practice and a consistent, methodical approach, the subject becomes manageable for nearly everyone.

Difficulty rating

Middle range

06 Why Radio Navigation matters in real life

Radio Navigation is not background knowledge — it is something every IFR pilot uses on every flight.

Consider an approach in low visibility. Signals from the ground guide the aircraft both laterally toward the runway centreline and vertically down to the correct touchdown point. A pilot who understands how these signals behave can immediately recognise when an indication is abnormal and respond correctly.

Consider en-route navigation. Even with automated systems managing the route, the underlying position information comes from ground stations and satellite fixes. Understanding what each source is providing — and how to cross-check between them — is what allows a pilot to catch a navigation error before it becomes a problem.

Consider a satellite-based approach. Before beginning, the aircraft checks whether the position information it is receiving is accurate enough for the procedure. If the quality falls below the required level, the system warns the pilot. Understanding what that warning means, and what the options are, requires exactly the knowledge Radio Navigation teaches.

These systems are present in the cockpit of every aircraft you will ever fly professionally. Understanding them is not optional.

Radio Navigation matters because modern IFR flying depends on correctly understanding both the source and the meaning of navigation guidance.
